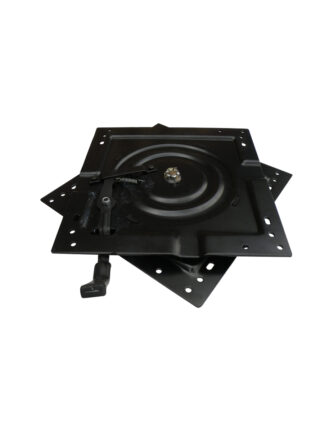

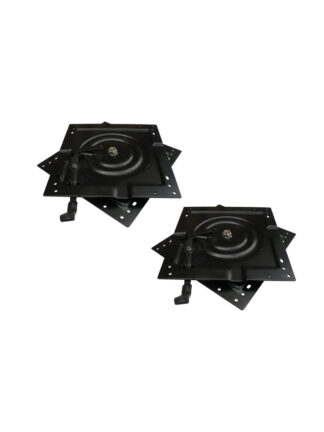

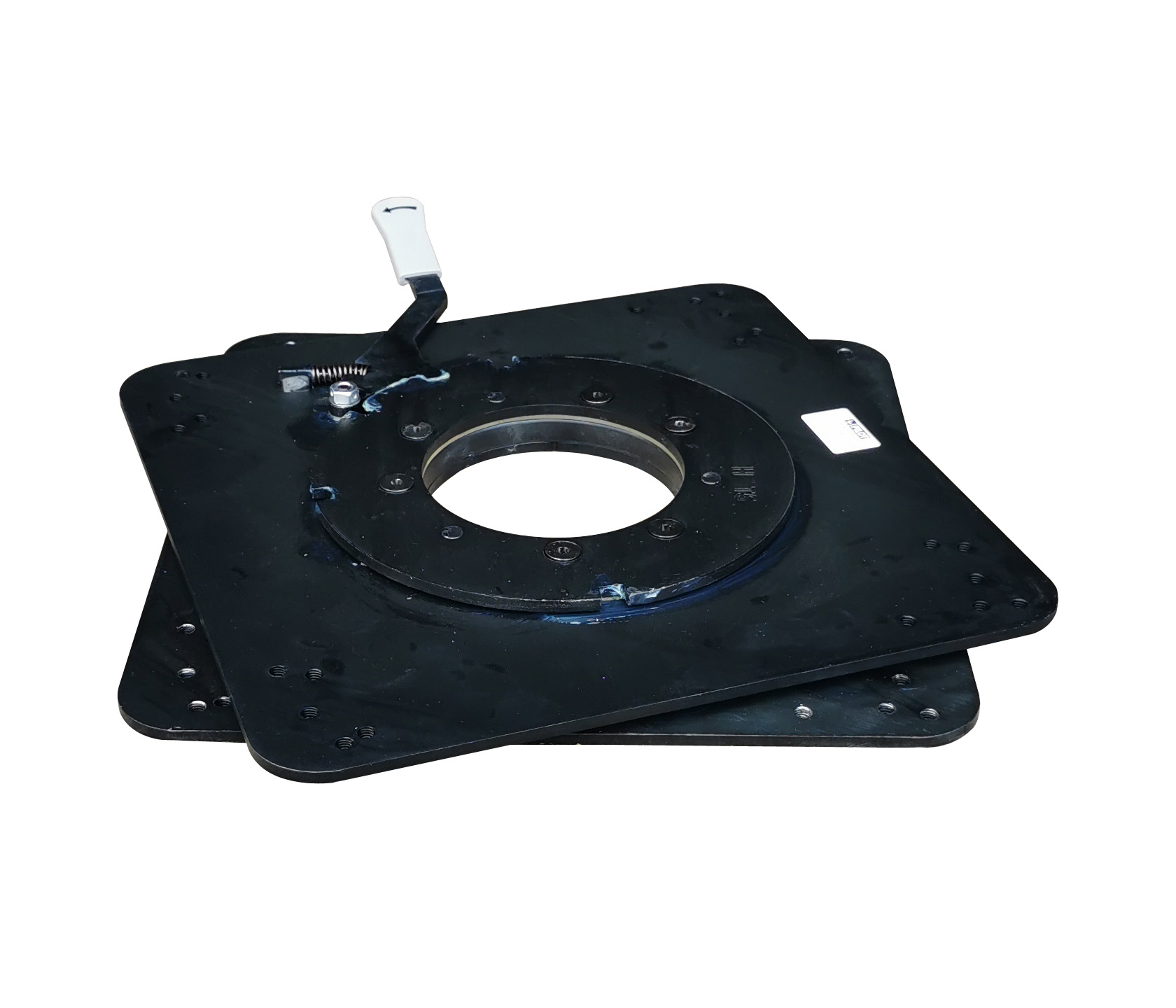

JP100479 Pilot General Purpose Heavy Duty Truck Seat Swivel

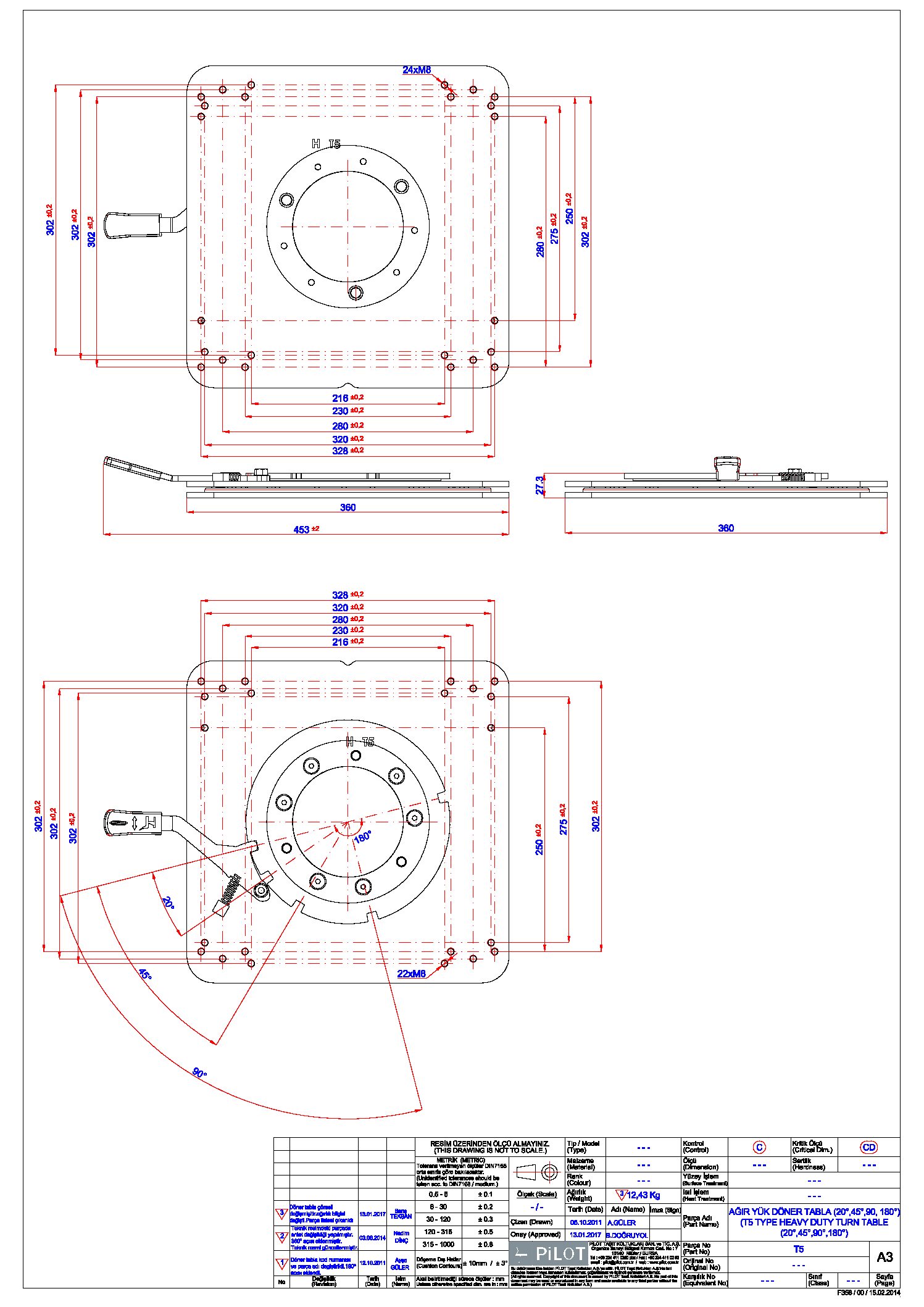

Pilot General Purpose Truck Seat Turntable / Swivel rotates both ways and locks out at multiple positions – please see the line drawing for these. This swivel is specifically designed for truck seats with a 3 point seatbelt. The swivel comes with the most common fixing centres for trucks, among these are Iveco, Renault, Scania, Man, Mercedes.

The swivel release handle is situated on the left hand side of the unit. The swivel can turn 360 degrees in both directions.

The release handle comes out of the left hand side of the swivel and protudes 100mm. The top and bottom plates have the same hole patterns.

The following fixing centres are possible M8 threaded holes:

Across in mm.  Front to back in mm

216         x       302

230         x       302

280         x       302

320         x       275

328         x       302

328         x       250

Additional holes could drilled.

Overall – Width 360mm (With the handle 453mm). Length 360mm.

Height: 27.3mm

Weight: 12.5KG

Product Code: JP100479

Only 1 left in stock (can be backordered)

SKU: JP100479 Categories: ,
