VW Crafter/MAN TGE 2017 Onwards Single Driver Captain Seat


VW Crafter/MAN TGE Single Driver Side Captain Seat

Swivel currently out of stock. More stock due week beginning 26th June. Available to back order.

This is a specially engineered VW Crafter MAN TGE 2017 driver side captain swivel seat assembly. As a result, this is supplied as a direct replacement for your existing driver seat. The VW Crafter and MAN TGE driver side captain swivel seat assembly can be supplied with or without the swivel base. Please select from the options below.

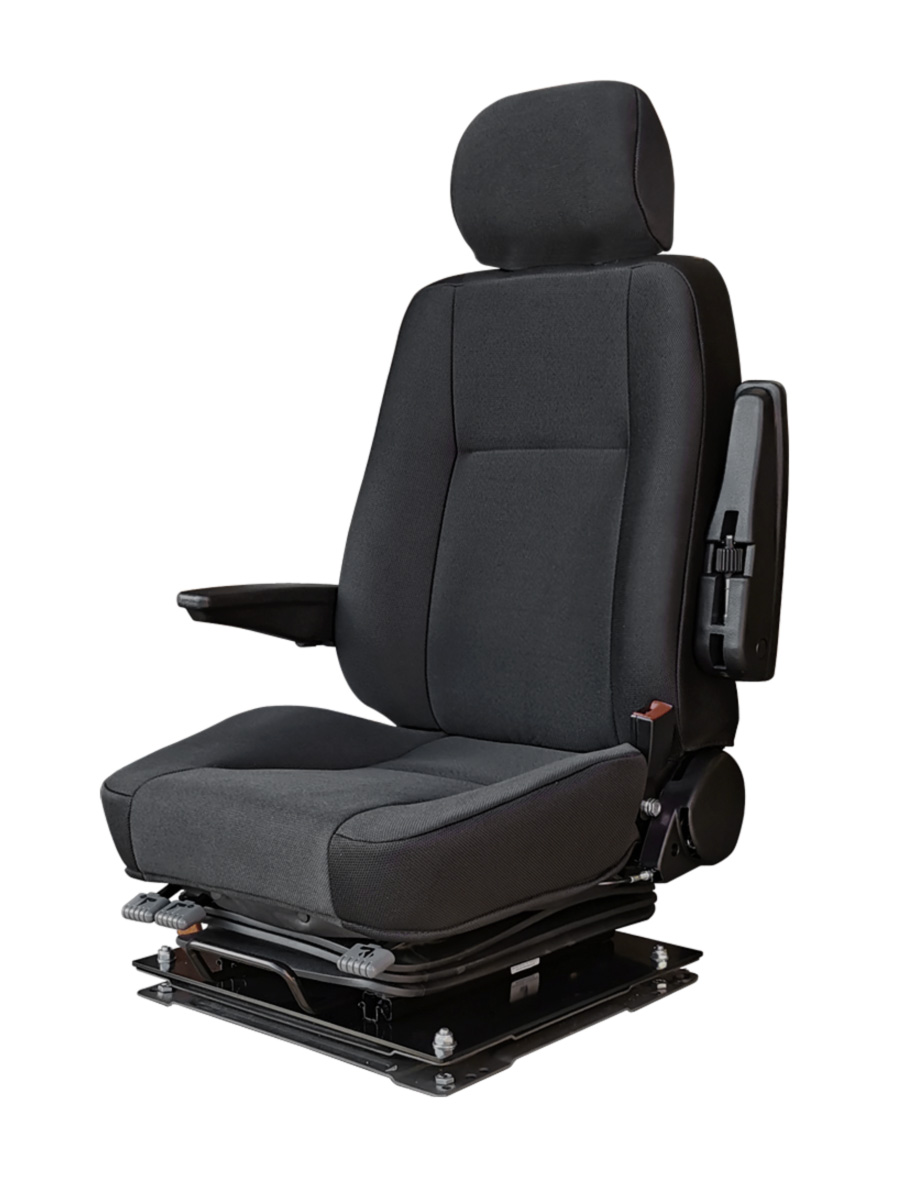

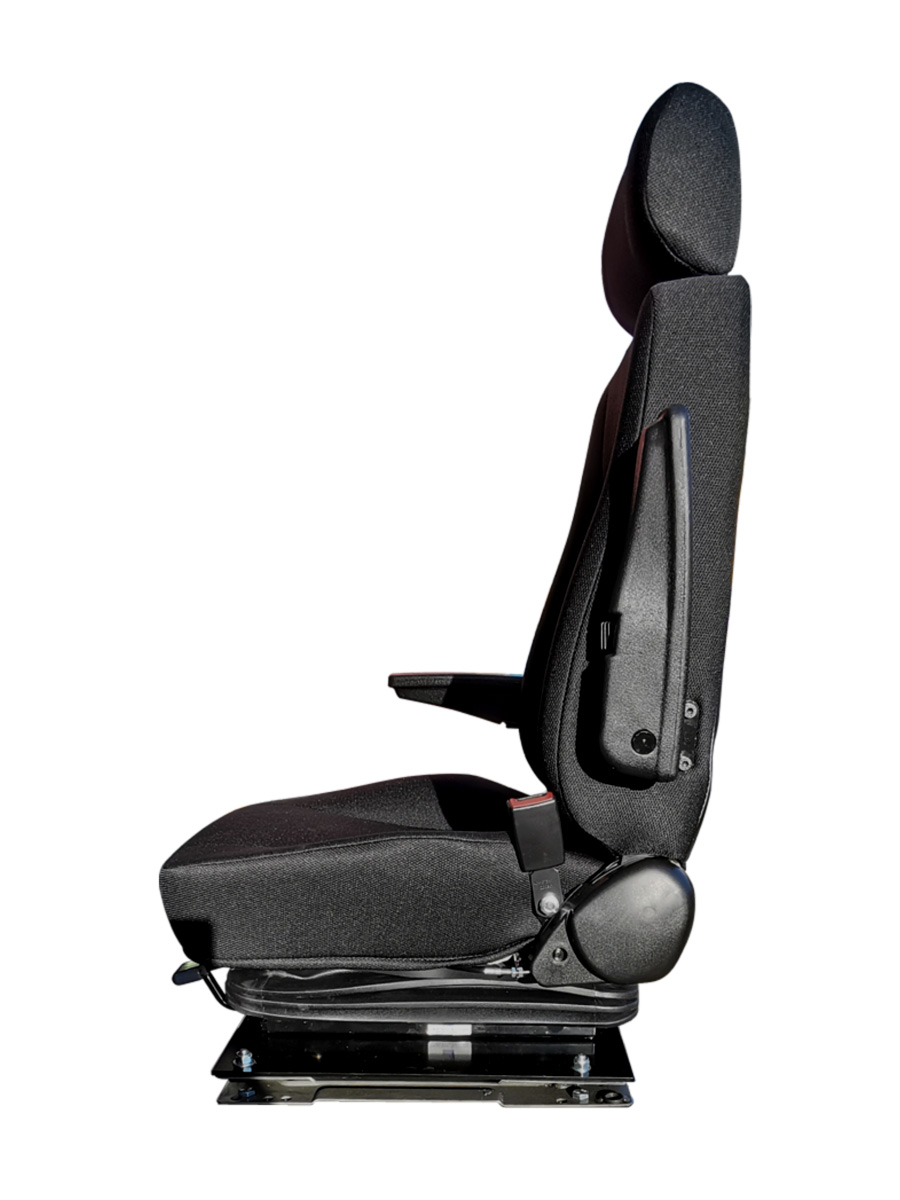

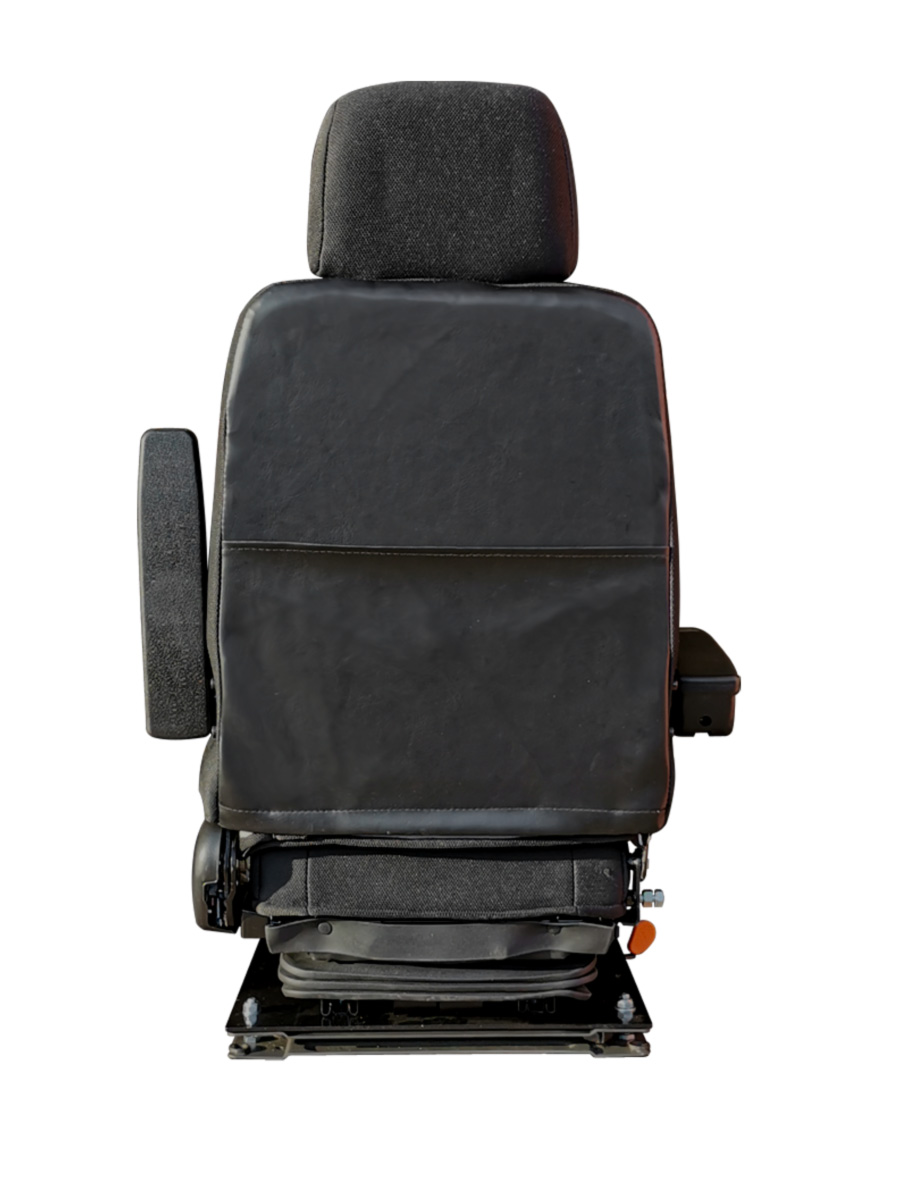

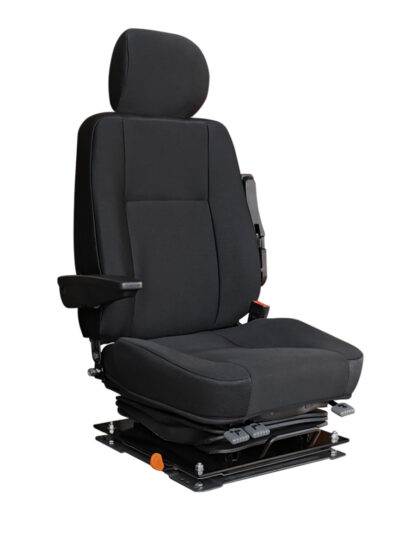

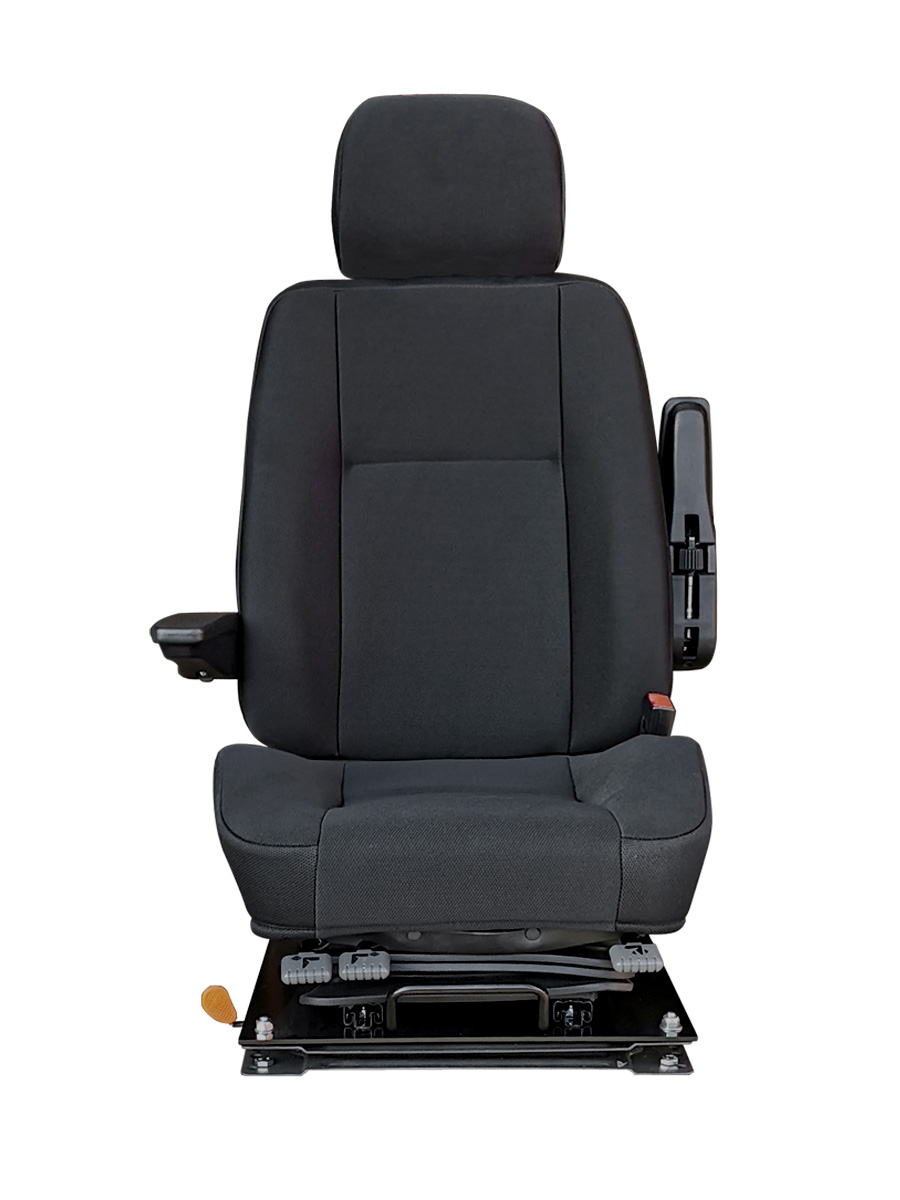

Please note that the picture is for reference only and displays all options.

For an accurate shipping quote to Ireland, Northern Ireland and the Scottish Highlands, please call.

Fitting a swivel to the driver’s side of the vehicle will increase your seating position by approximately 40mm over standard height. You must lower the handbrake to enable the swivel to rotate fully. Our seats and swivels are supplied with full instructions on how to lower the handbrake and all additional fixings required. The electrical connector for the seatbelt warning light may need re-locating. Please note that if your vehicle is equipped with the automatic retracting handbrake, the driver side swivel will require spacing by 40mm.

Please note: You will need to reuse your seatbelt receiver. You will need to re-route the seatbelt warning light connector block.

This kit is supplied as a direct fit with no extra drilling required. The seat comes as standard with a pair of armrests that feature angular adjustment, an adjustable headrest, seatbelt stalk/receiver and a bespoke adaption to suit the VW Crafter MAN TGE 2017 driver side.

Please note that delivery time for this seat is 5-7 work days. This can be longer during busy periods.

Seat Features:

  • 150mm fore / aft slide adjustment.
  • 60mm 2 lever height and inclination adjustment.
  • All controls at front of seat.
  • Backrest recline.
  • Fold up armrests with angular adjustment.
  • Height adjustable headrest.
  • Tested in accordance with ECER14/M2

If you do not see what you need, please call us on 01270 257417 to discuss your requirements. You can also visit our dedicated swivel and motorhome seating website www.swivel-seats.com In additional, we also stock the pre 2017 Sprinter/Crafter seat assembly here: 2007 – 2017 Mercedes Sprinter/VW Crafter passenger side captain seat.
